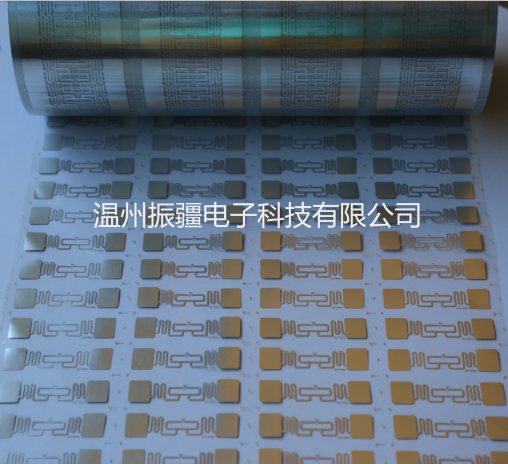

UHF AL Etched antenna

2016-8-27

RFID ultra high frequency antenna technical parameters:
Antenna process: etching
Antenna material: AL-PET
Frequency: 860MHZ+960KHZ
Working temperature: -5°C+60°C
Storage temperature: -5°C+60°C


HF/UHF aluminum etching material specifications

HF/UHF antenna parameters
technology  line width   line spacing    frequency       Instant temperature resistance   Storage temperature
Roll to roll  0.05 mm    0.05 mm    13.56±0.2MHz/840~960MHz  10second250℃            -5~25℃

Plan

Customer provides design drawing of antenna, its design software is AUTO CAD (.dwg). If so, we can give plate charge and quotation on that day. We can sign contract each other after confirming all details, in one working day artwork drawing will be provided for customer’ confirmation, as soon as the customer confirms the drawing and also pay plate charge, we will start making plate and produce samples, 1000 pieces of samples for free will be given to customer for confirming.
